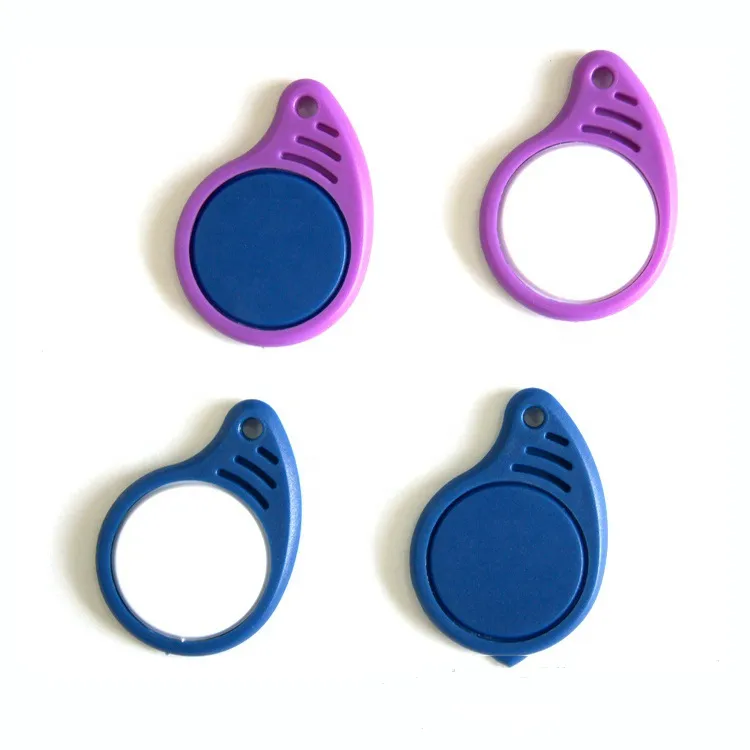

Mifare Key Fobs
MIFARE key fobs are contactless, portable, and easy-to-use devices that…
RFID Fabric Laundry Tag
RFID Fabric Laundry Tag is an RFID fabric laundry tag…
Nuhou Hou
Wehewehe pōkole:
High Temperature RFID tags are designed for use in high-temperature environments, using polyphenylene sulfide (PPS) material for resistance, non-toxicity, flame retardancy, chemical corrosion resistance, and insulation properties. They have functionalities like read/write data retention, read range, and environmental certifications like Reach, RoHS, CE, and ATEX.
Kaʻana like iā mākou:
Product Detail
The High Temperature RFID tags is a specially designed radio frequency identification tag that has the ability to work stably in high-temperature environments. High-temperature RFID tags usually use polyphenylene sulfide (PPS) material. PPS is a structurally stable and highly rigid crystalline resin engineering plastic that has the advantages of high-temperature resistance, non-toxicity, flame retardancy, chemical corrosion resistance, and good insulation properties. These labels have the characteristics of high-temperature resistance, flame retardant, chemical resistance, high rigidity, and wear resistance, and can be used in harsh environments such as high temperature, high humidity, wear resistance, and corrosion resistance.
Functional Specifications:
RFID Protocol: EPC Papa1 Gen2, ISO18000-6C Ka pinepine: US (902-928MHZ), EU (865-868MHZ)
Alien Higgs-3,
IC type:
(Monza M4QT, Monza R6, UCODE 7XM+, or other chips are customizable.)
Memory: EPC 96bits (Up to 480bits) , USER 512bits, TID 64 bits
Write Cycles: 100,000 times Functionality: Read/write Data Retention: Up to 50 Years Applicable Surface: Metal Surfaces
Read Range :
(Fix Reader)
Read Range :
(Heluhelu lima lima)
6.5 m, US ( 902-928MHZ )
6.6 m, EU ( 865-868MHZ )
4.4 m, US ( 902-928MHZ )
4.6 m, EU ( 865-868MHZ )
Warranty: 1 Year
Physical Specification:
Nui: 46.5×31.5mm, Hole: D3.6mmx2
Thickness: 7.5mm
Mea waiwai: Antenna: ceramic. Shell: PEEK (other materials can be customized). Colour: Black
Mounting Methods: Screw – Socket head cap screw(M2.5), Rivet, Adhesive
Weight: 19.5g
Dimensions
Environmental Specification:
IP Rating: IP68
Storage Temperature: -40°С to +180°С
Operation Temperature: -25°С to +150°С
Certifications: Reach Approved, RoHS Approved, CE Approved, ATEX Approved.
MT011 U1, Metal Surface(902-928MHZ):
MT011 E1, Metal Surface(865-868MHZ):
Radiation pattern:
