Metal RFID Access Control

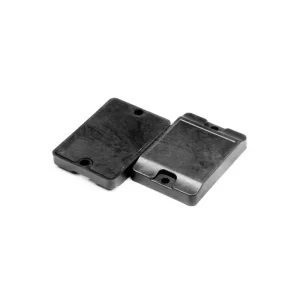

Metal RFID Access Control MT012 4601 is an RFID tag especially applicable to the concrete and construction industries. With excellent high temperature, corrosion, impact resistance, and other properties.

Functional Specifications:

• RFID Protocol: EPC Class1 Gen2, ISO18000-6C Frequency: US (902-928MHZ), EU (865-868MHZ)
• IC type: Alien Higgs-3,
• (Monza M4QT, Monza R6, UCODE 7XM+, or other chips are customizable.)
• Memory: EPC 96bits (Up to 480bits) , USER 512bits, TID 64 bits
• Write Cycles: 100,000 times Functionality: Read/write Data Retention: 50 Years Applicable Surface: Metal Surfaces
• Read range on metal:

(Fix Reader)

6.5m, US(902-928MHZ)

6.6m, EU(865-868MHZ)

Read range on metal:

(Handheld Reader)

Reading range when embedded 5 cm deep in concrete:

(Handheld Reader)

Reading range when embedded

10 cm deep in concrete:

(Handheld Reader)

4.4m, US(902-928MHZ)

4.6m, EU(865-868MHZ)

2.2m, US(902-928MHZ)

2.1m, EU(865-868MHZ)

2.0m, US(902-928MHZ)

1.9m, EU(865-868MHZ)

Warranty: 1 Year

Environmental Specification:

IP Rating: IP68

Storage Temperature: -40°С to +150°С

Operation Temperature: -25°С to +100°C

Certifications: Reach Approved, RoHS Approved, CE Approved, ATEX Approved.

Physical Specification:

Size: 46.5×31.5mm, Hole: D3.6mmx2

Thickness: 7.5mm Material: PPS Colour: Black

Mounting Methods: Embedded in concrete

Weight: 22g

Dimensions

MT012 U1, Metal Surface (902-928 MHZ):

MT012 E1, Metal Surface (865-868 MHZ):
